Wood-chip hopper: a clean, buildable design package delivered right first time

A small package within a wider plant design called for a wood-chip hopper, support frame and safety/access features. Frugal was commissioned to develop this client’s rough layout into a buildable manufacturing detail package, working to a third-party structural basis.

Sprint

Materials handling

Manufacturing detail package

DFMA improvements

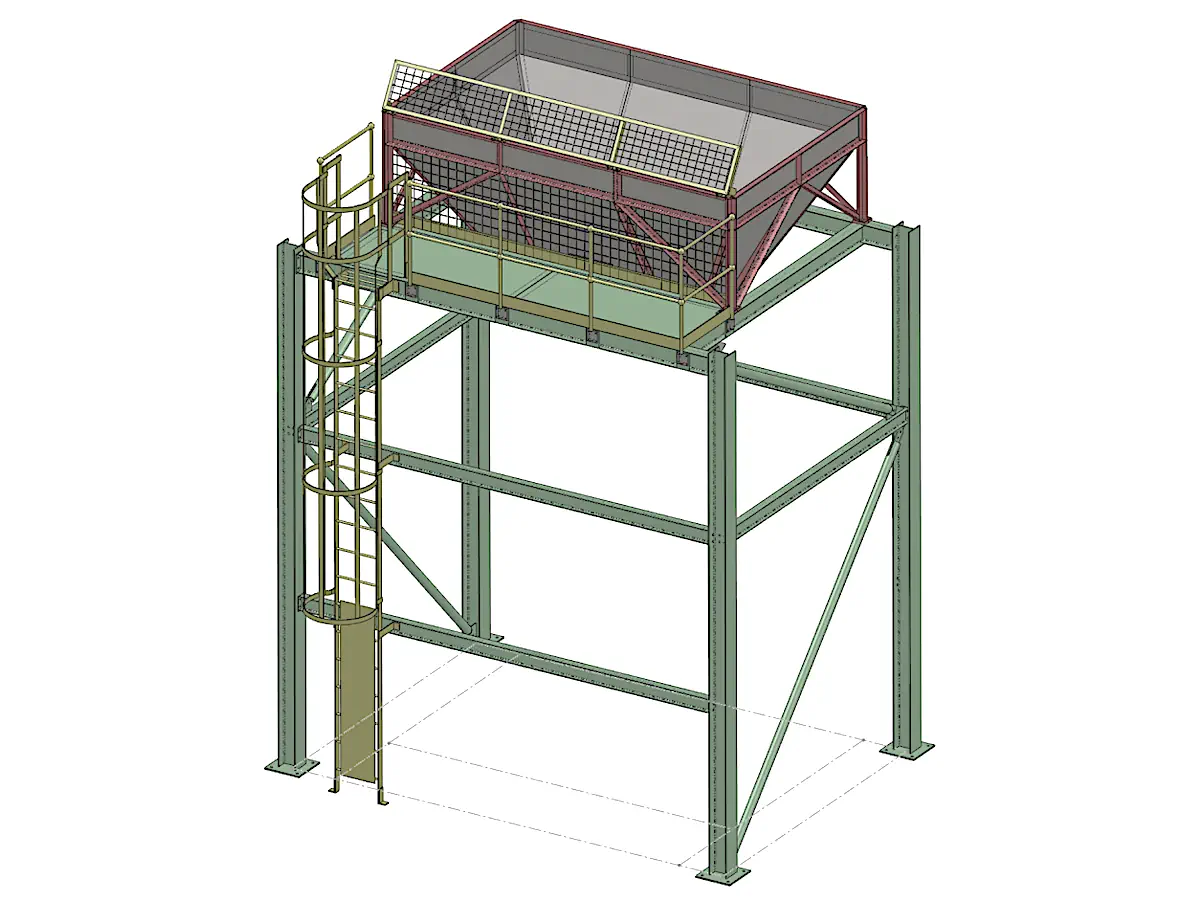

The 3D manufacturing-detail model of the hopper

Situation

A hopper package had already been roughed out in 3D within a wider plant layout to establish space claim, general arrangement and main interfaces. Frugal was commissioned to develop that early concept into a resolved package for manufacture, assembly and integration on a tight programme, with the design reviewed and coordinated rapidly through exchanged 3D models.

It covered the hopper, support frame, work platform, CAT ladder, handrailing and related safety features, to fit within an already-defined envelope.

The real problem

The real problem was not just to detail the concept, but to turn it into something cleaner, lighter and easier to fabricate without stepping outside the established layout or structural basis. If that rationalisation was not done early, the package was likely to carry unnecessary part variety, excess steel weight, and avoidable friction into review, fabrication and coordination.

Constraints

Fixed envelope, levels and interfaces: The package had to fit an already-established arrangement while also suiting the set conveyor positions and angles.
Structural basis: Primary steel sizes and spans were already set by others, so the package and connection detailing had to work within that basis.
Bolt-together assembly: The package was expected to be fabricated and erected as a straightforward kit of parts, with minimal reliance on site welding or ad hoc adjustment.
Fabricator-led detailing: The design needed to suit the selected manufacturer’s capabilities while keeping fabrication effort, material use and part variety under control.
Vibrator integration: A client-selected side vibrator had to be properly incorporated into the hopper design from the outset rather than be added on as an afterthought.

Client:

Independent plant layout +
mechanical design consultancy

Role:

Mechanical engineering design consultant

Period:

2014

Scope:

Detailed design + connection calcs
Hopper, support frame +
access/safety package

Acceptance basis:

Client concept/layout brief +
Structural engineer’s design basis +
Client / third-party approval

Key moves

Rationalised the concept before detailing it

Sense-checked the client’s roughed-out arrangement rather than simply detailing it as given.
Simplified the layout to reduce part variety and improve manufacture and assembly, which also cut around 20% from the steel weight.

Actively coordinated the structural design basis

Developed the package to reduce steel weight and part variety, while staying realistic about structural feasibility.
Worked with the structural engineer so the revised arrangement could be checked and progressed quickly.

Designed the package for straightforward assembly

Detailed the package as a bolt-together kit of parts intended for efficient fabrication and fast erection on site.
Resolved the assembly logic up front so fabrication and erection did not depend on site welding or ad hoc fit-up.

Developed the package to manufacturing detail

Produced a clean, full-detail 3D model and drawing pack covering the hopper, support frame and access features for manufacture.
Delivered a lean, usable 3D model that the client could reinsert into their wider plant model for ongoing coordination.

Selected snapshots

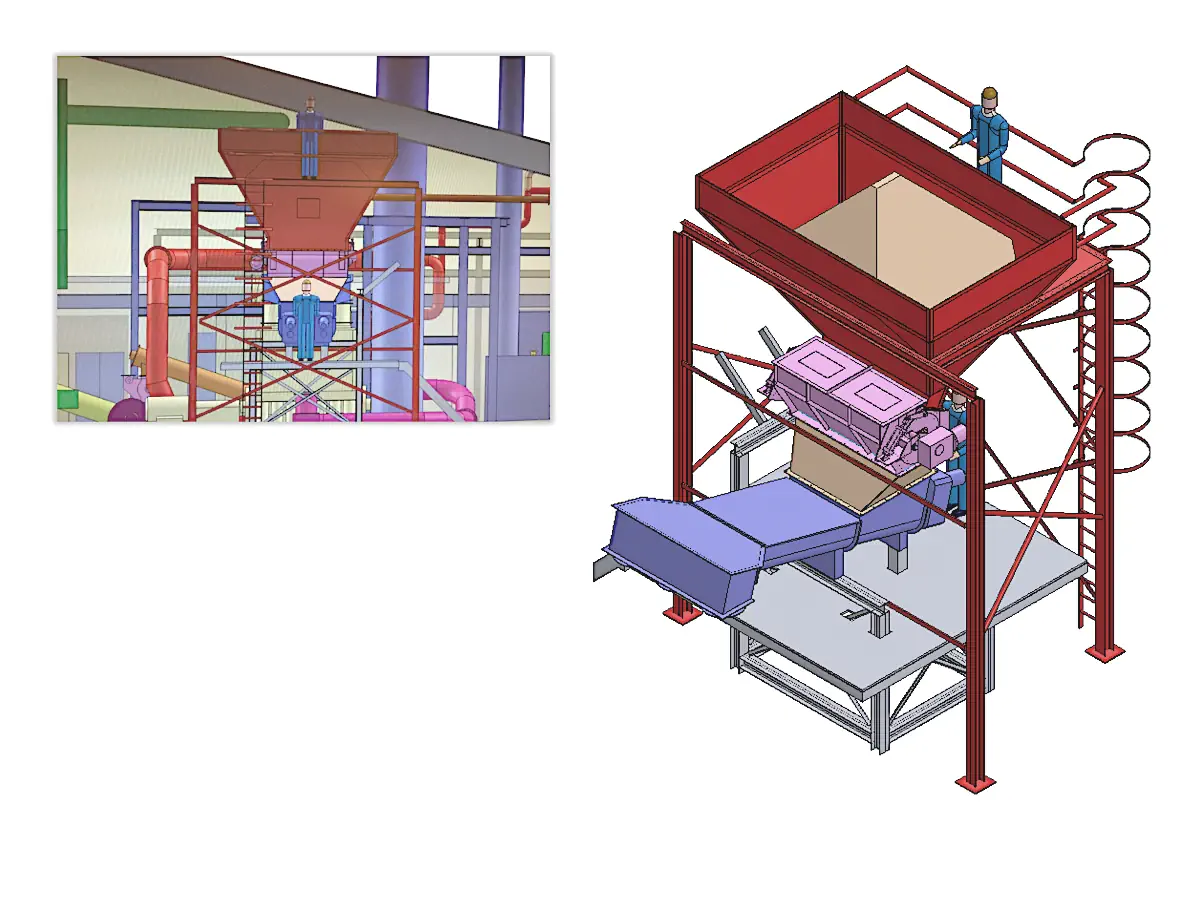

Client’s wider plant model, with the rough hopper concept used to establish space claim and arrangement.

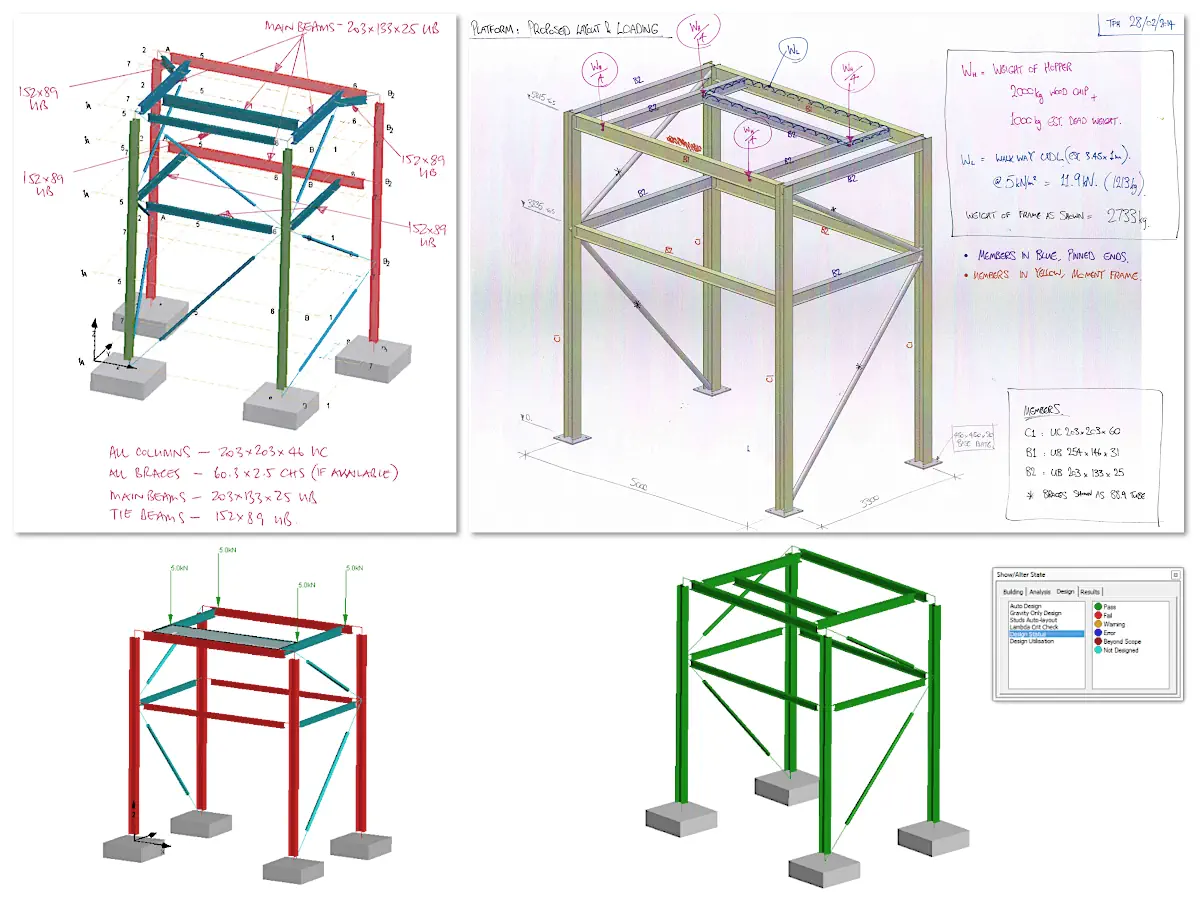

Early rationalisation: original and revised layout, and the structural engineer’s updated analysis model and results.

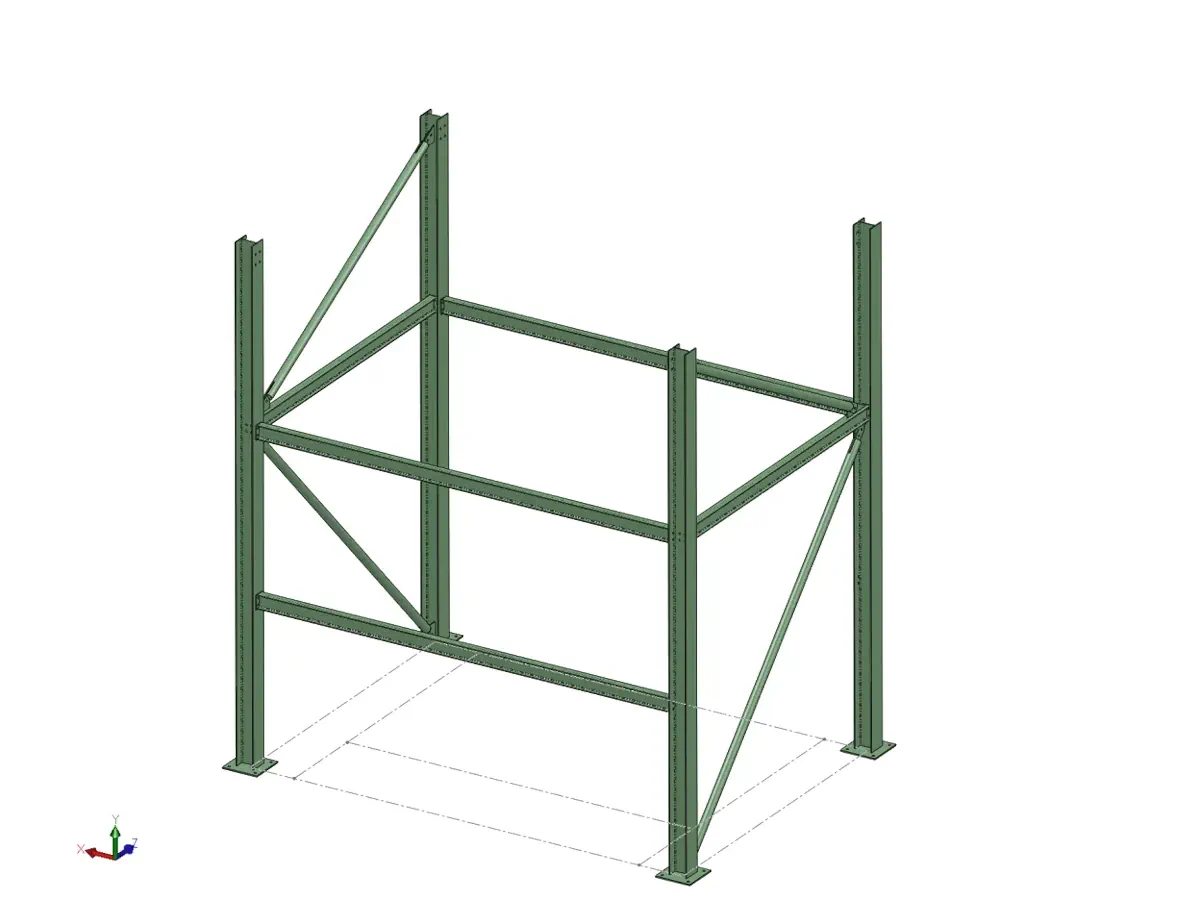

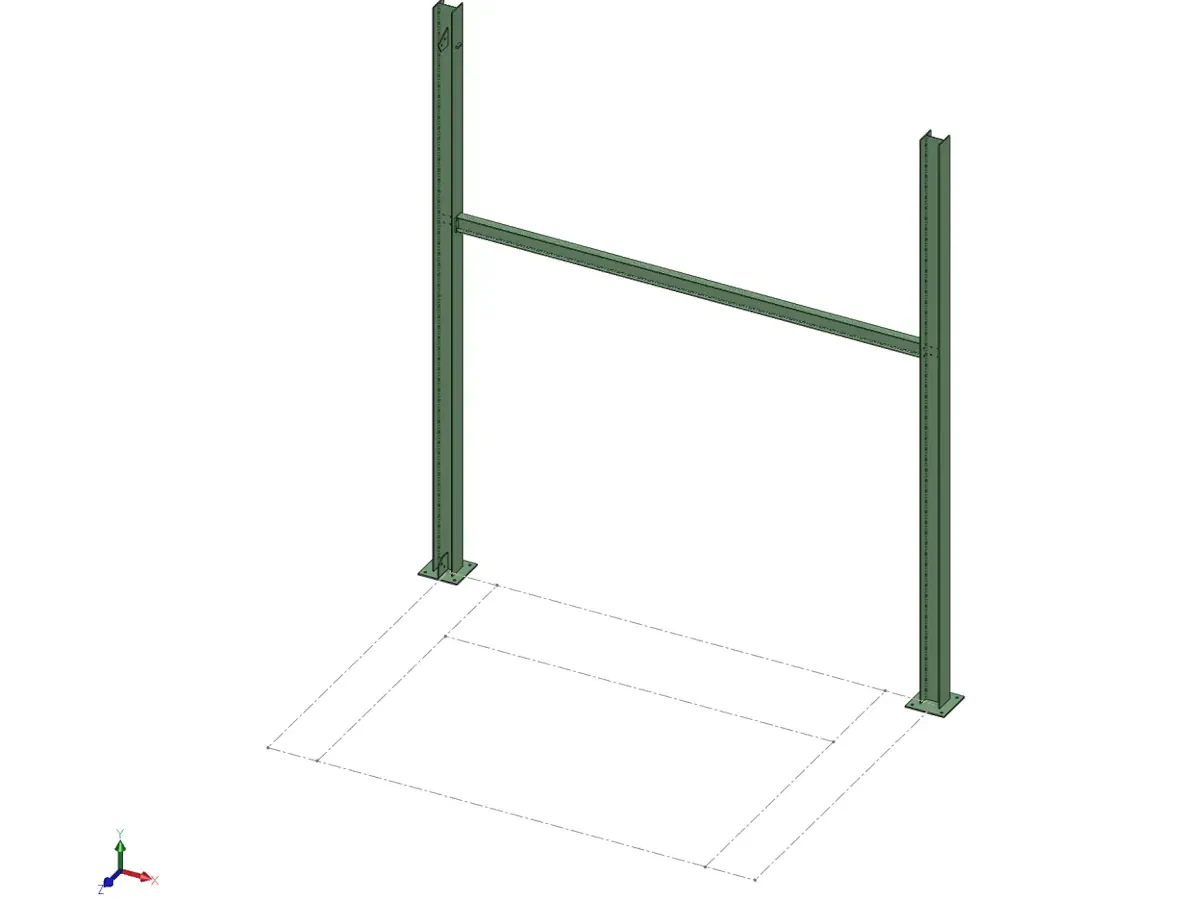

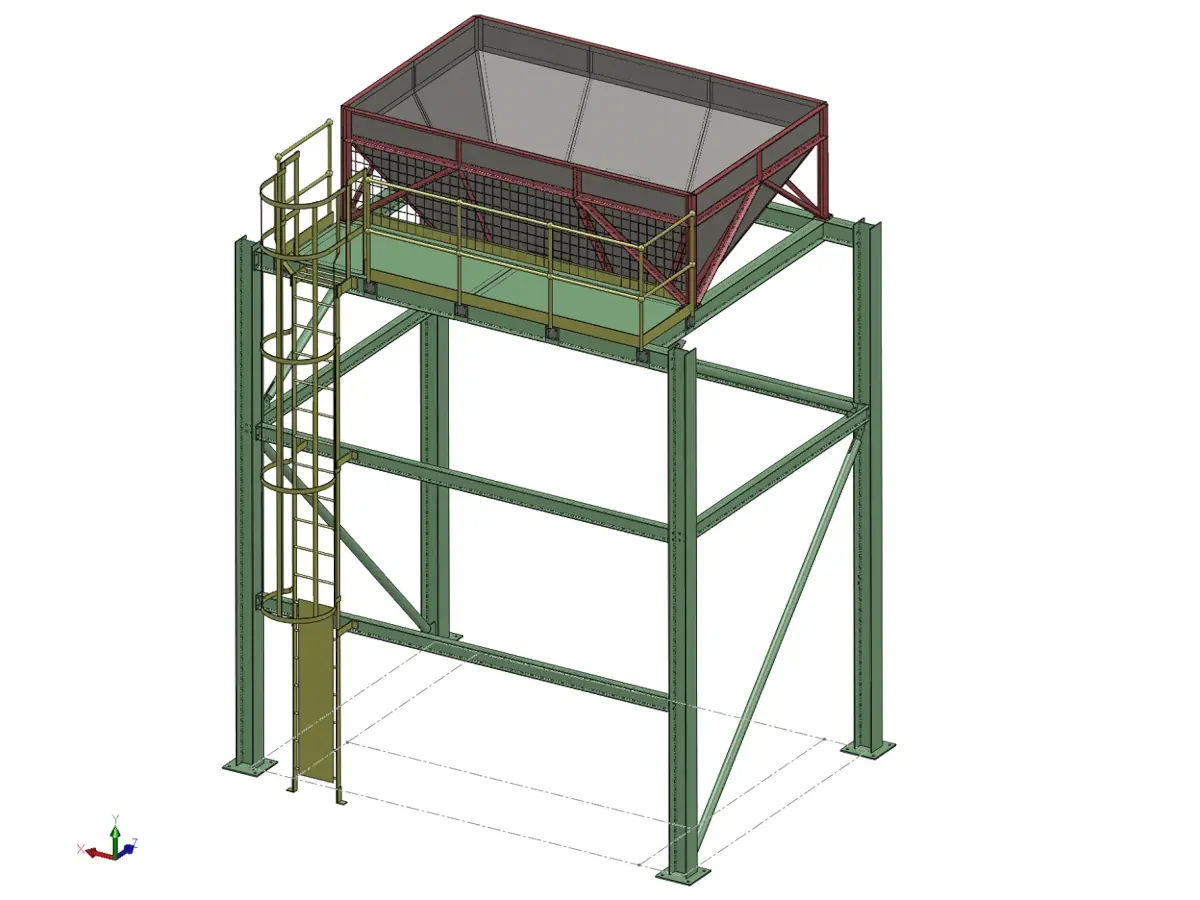

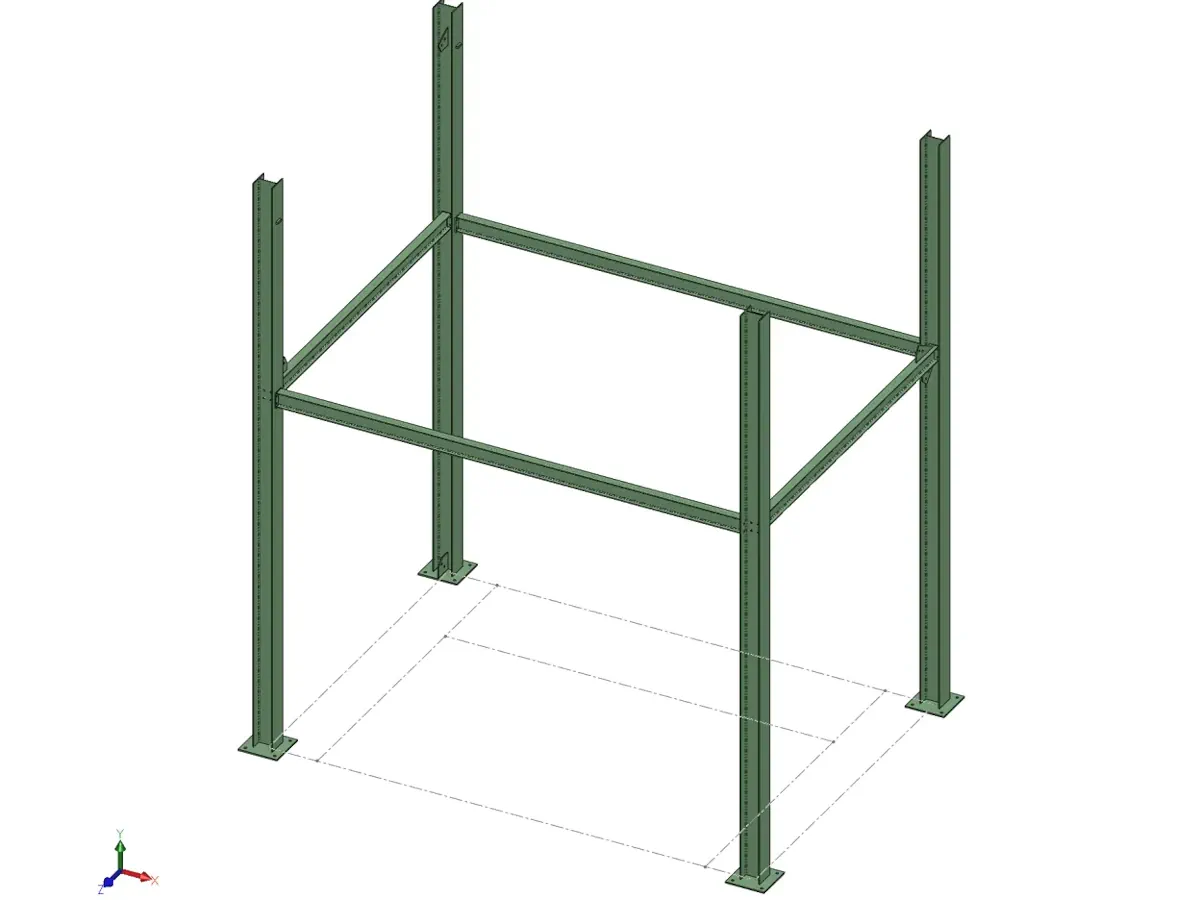

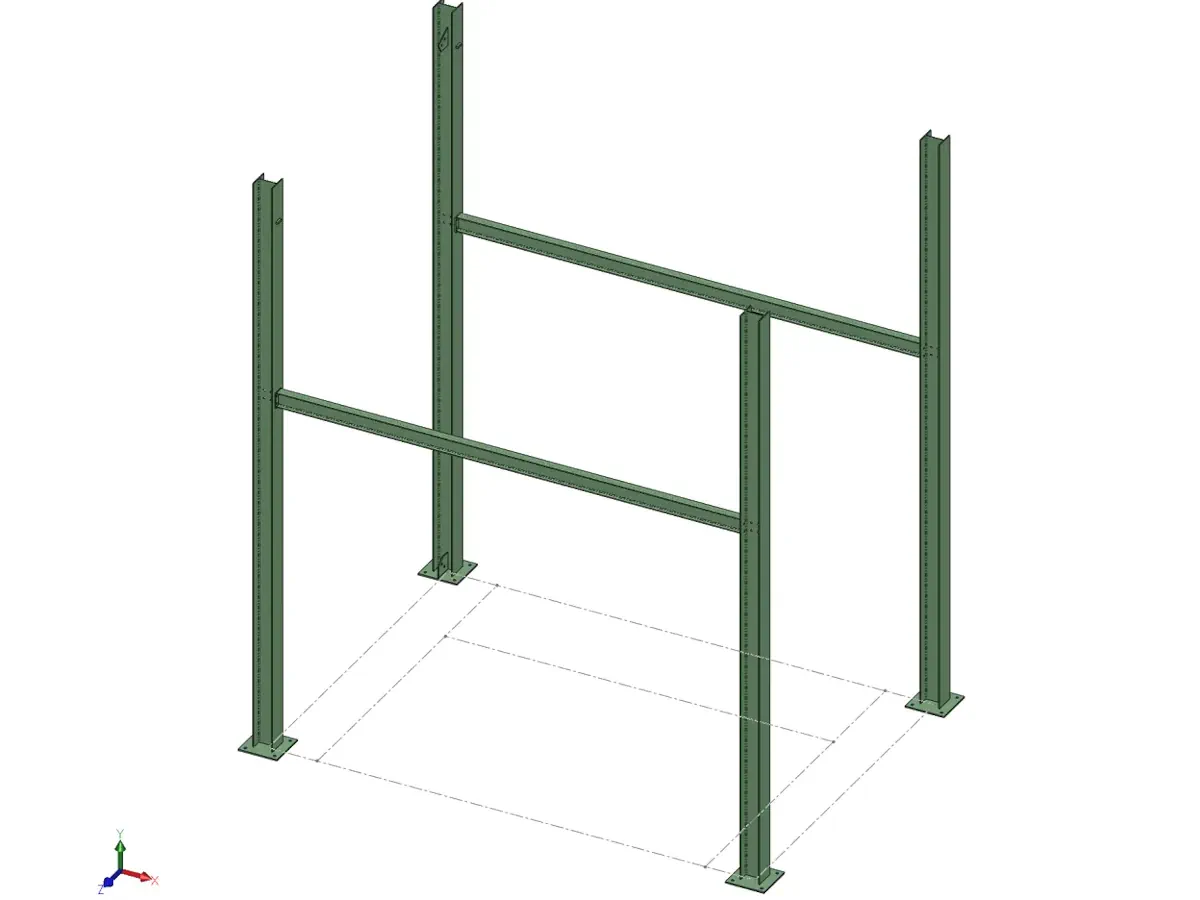

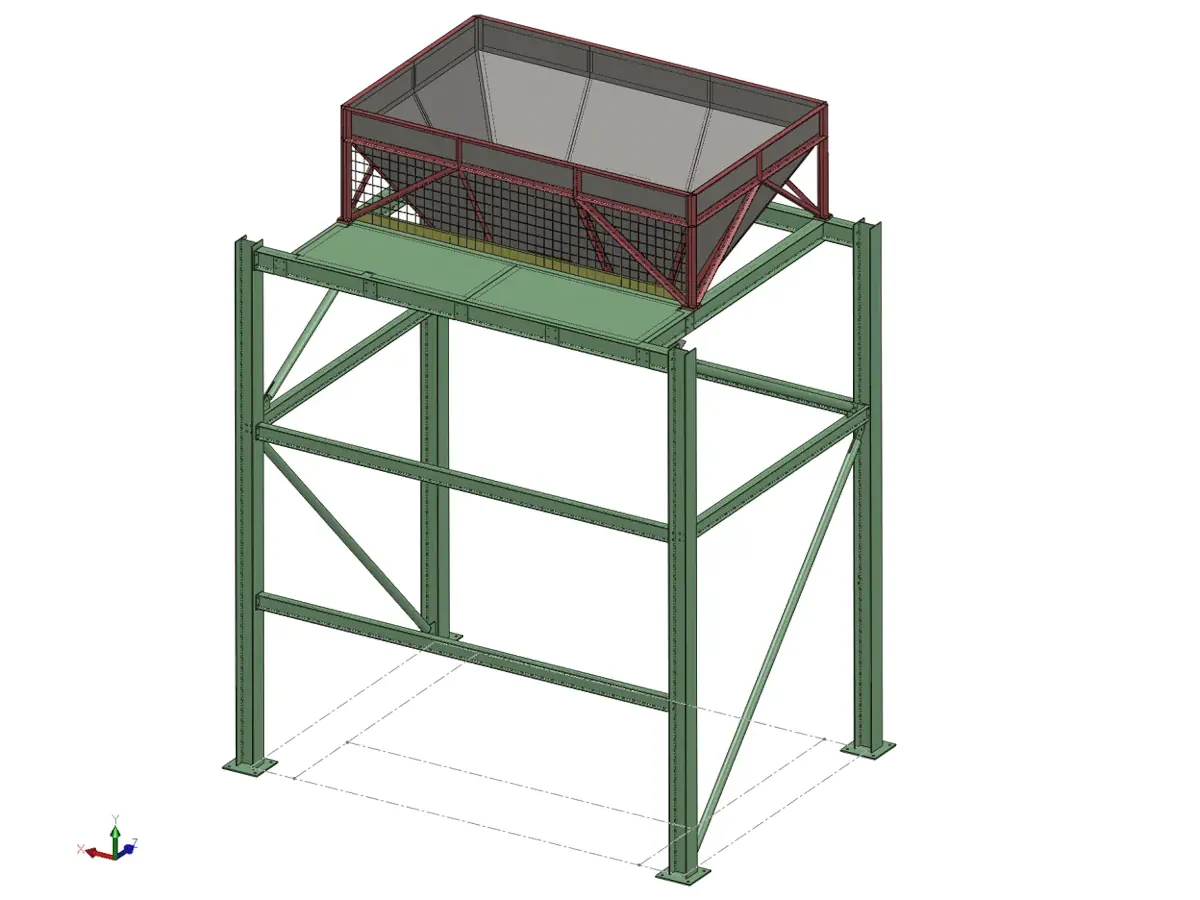

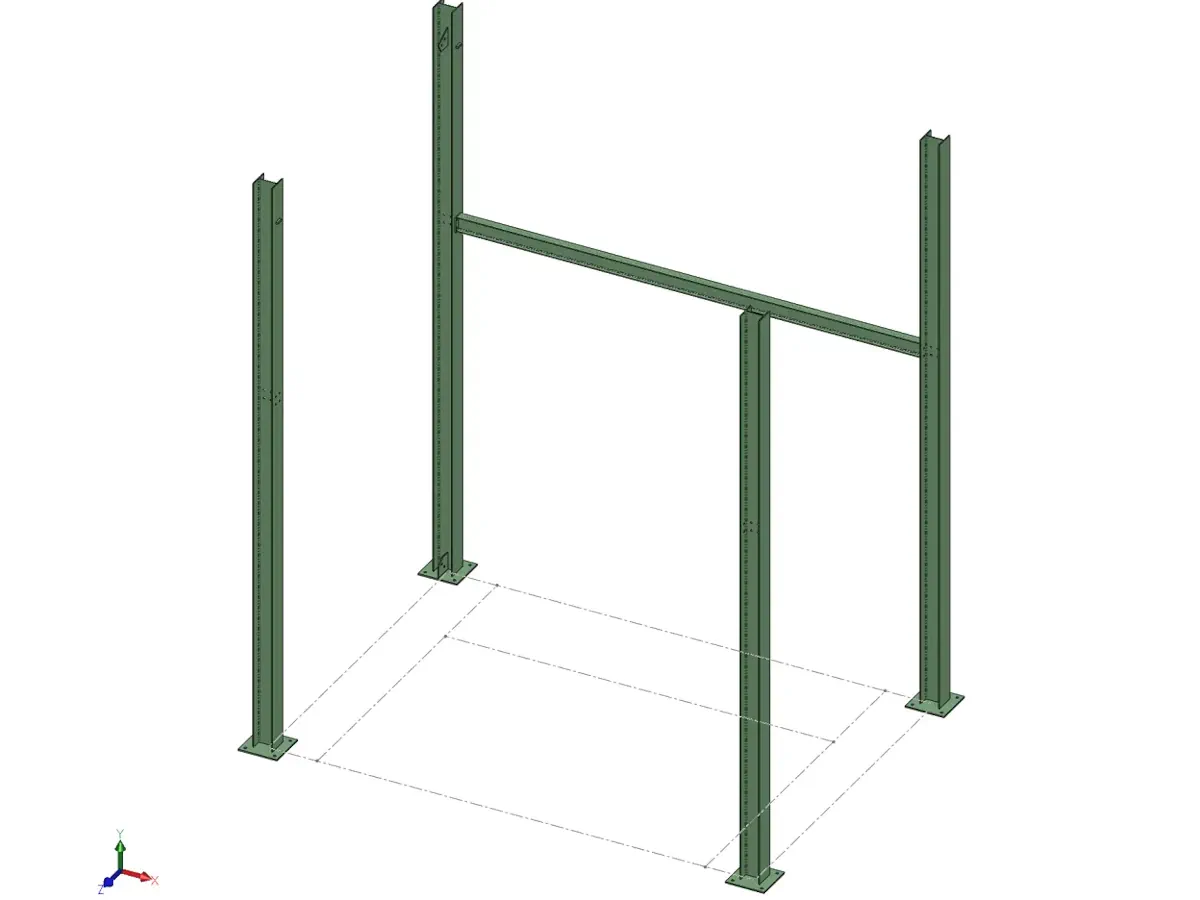

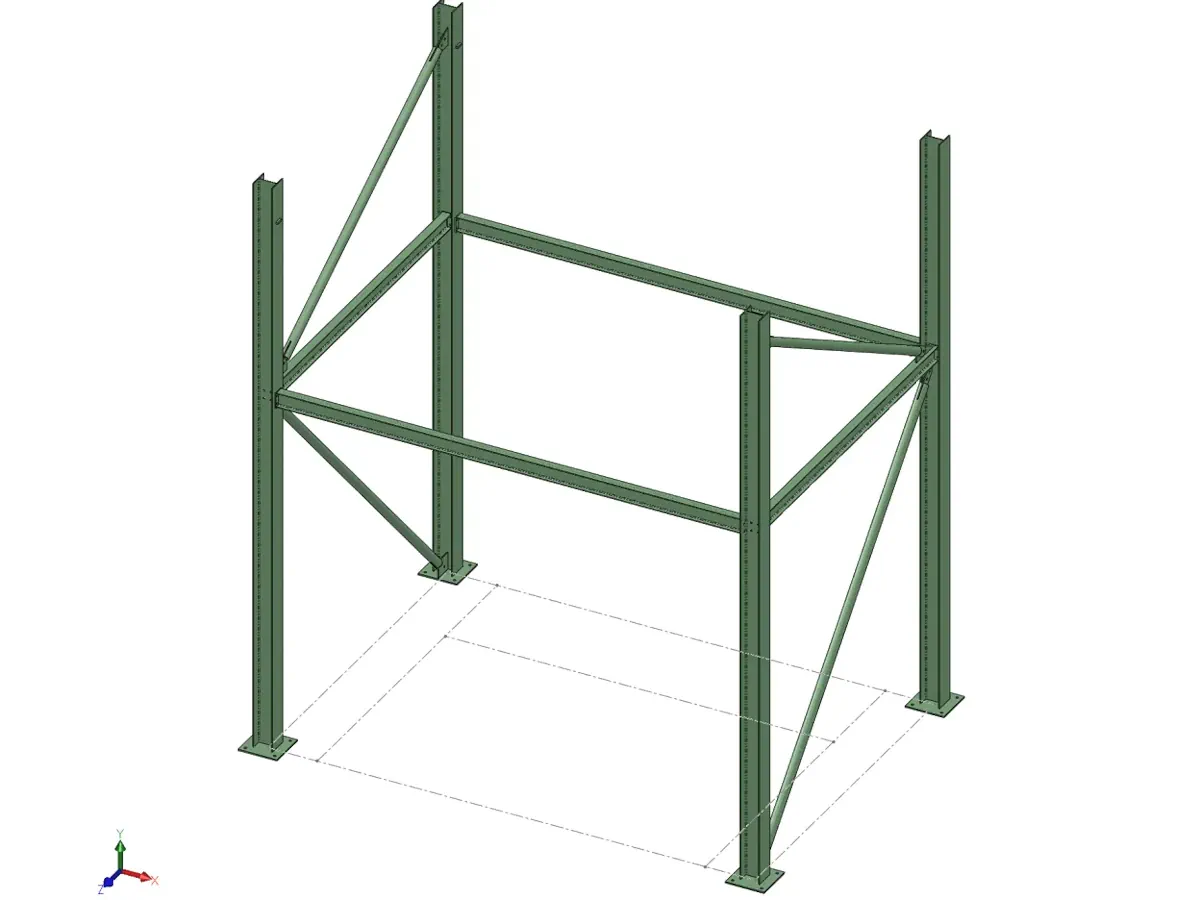

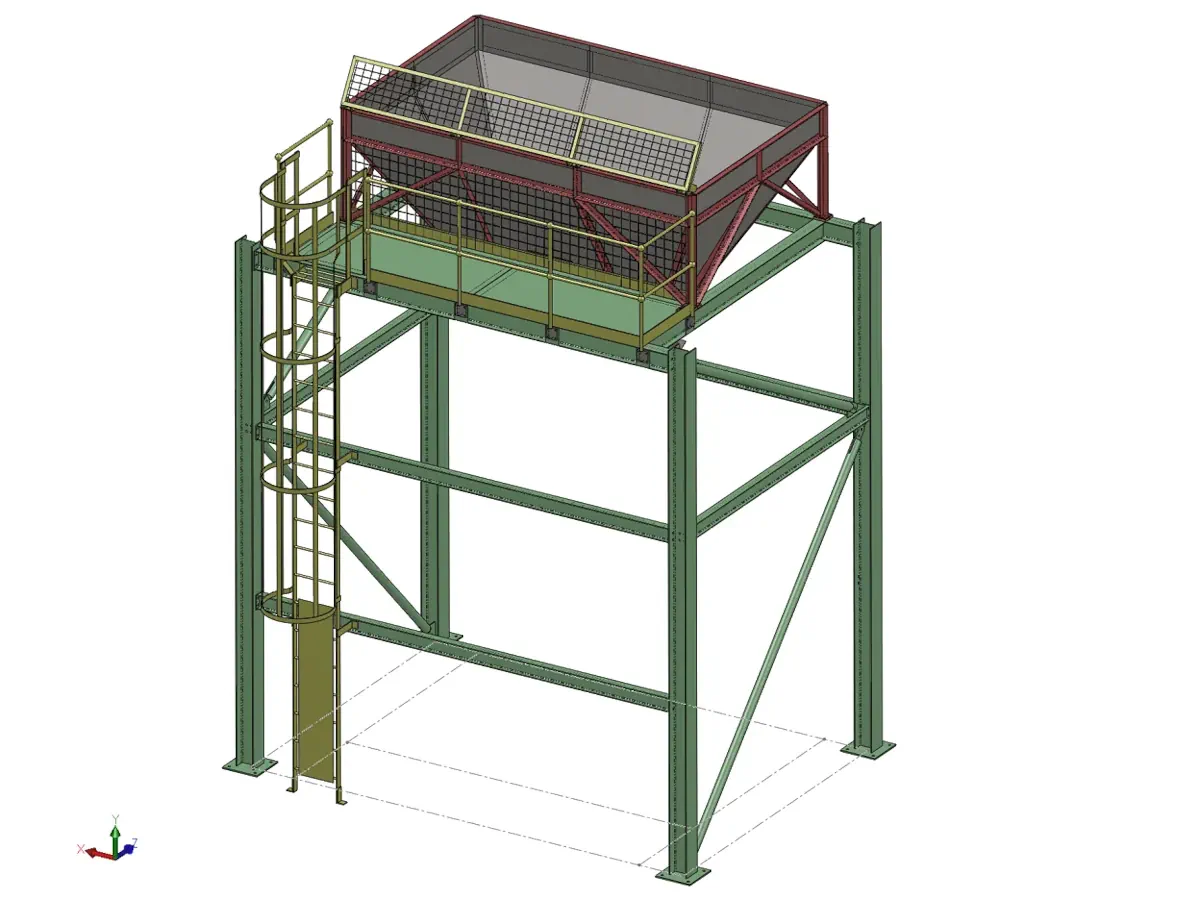

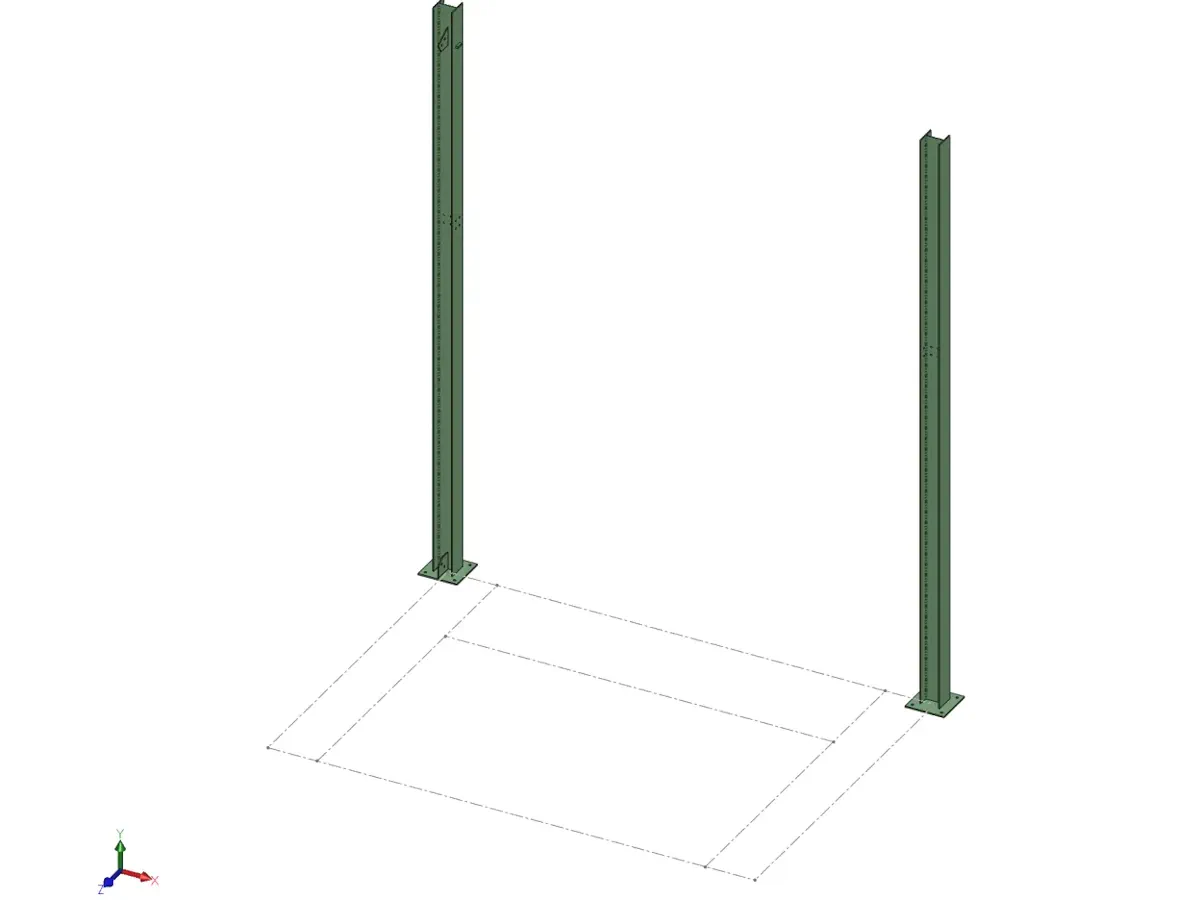

Illustrative erection sequence for the hopper support frame and access elements.

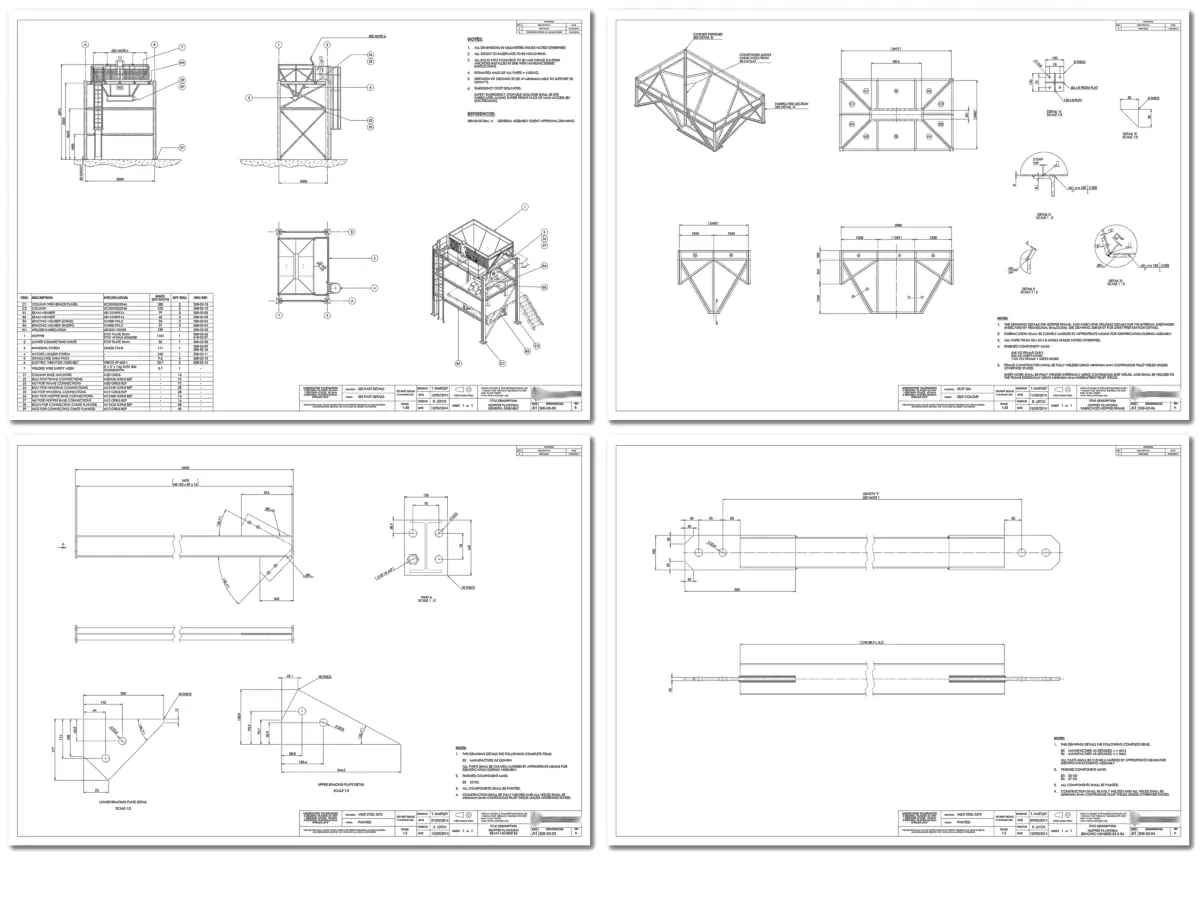

Selection from the issued manufacturing drawing pack, to end-client standards and on their borders.

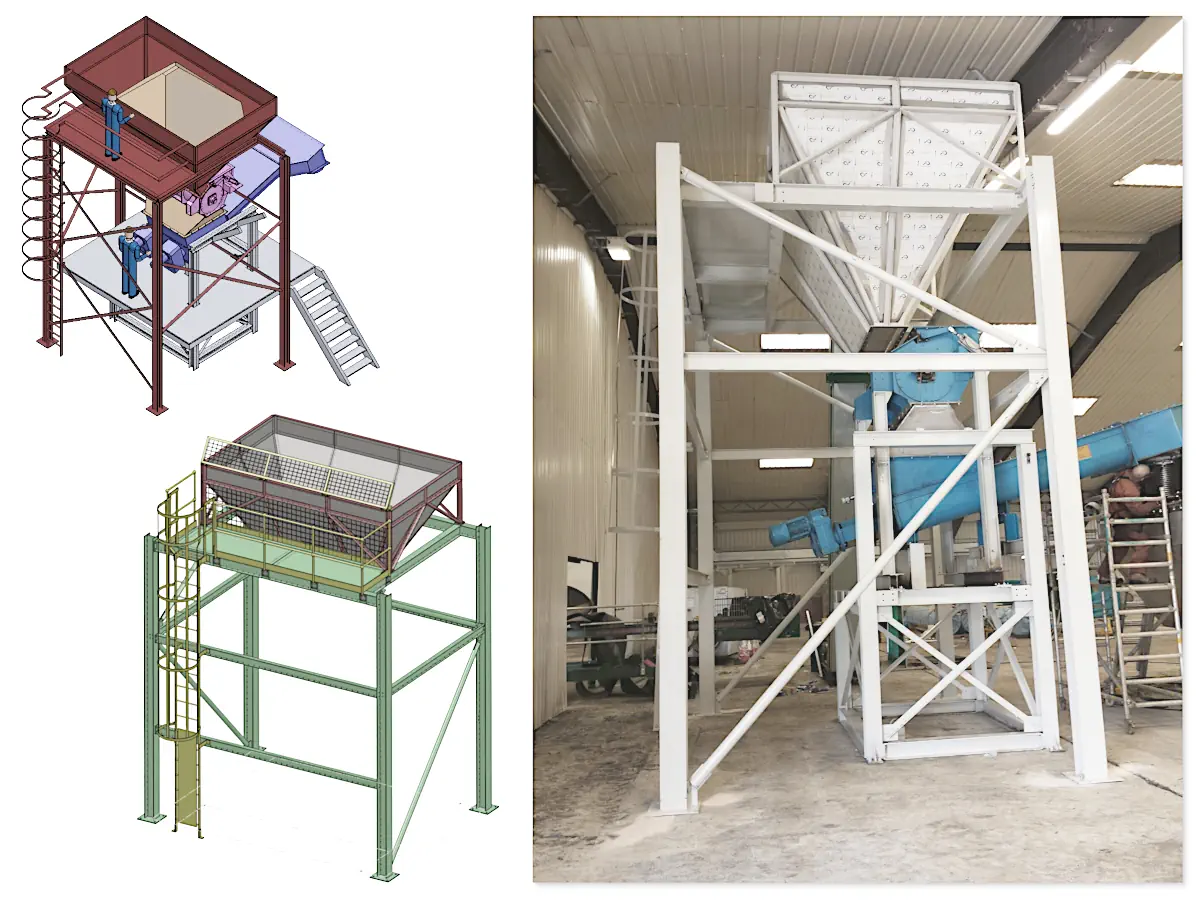

From client's roughed-out concept, to rationalised full-detail model, to the completed installation.

Outcome

Frugal delivered a manufacturing package for the hopper, support frame and access features, together with a detailed 3D model suitable for reintegration into the client’s wider plant layout. The package was clear enough to move into fabrication without drawing revisions or technical queries.

What this enabled

The client was able to delegate this work package to Frugal and stay focused on wider plant coordination and programme delivery. They were not drawn into design-fabrication churn or into resolving omissions or oversights once the package moved into production.

Business perspective

No formal testimonial was retained for this project. However, the client’s feedback was positive — the package had been manufactured and installed successfully, with only a minor fabricator comment on stainless sheet nesting efficiency.
