Case Study

Clarifier scum beach: reverse-engineering a first-time-fit replacement from corroded remains

With the original carbon-steel scum beaches heavily corroded and no usable design record available, Frugal surveyed the remains, developed a replacement design in stainless steel, and delivered a fabrication package that was installed successfully first time.

Sprint

Water treatment

Reverse engineering

Carbon to stainless steel

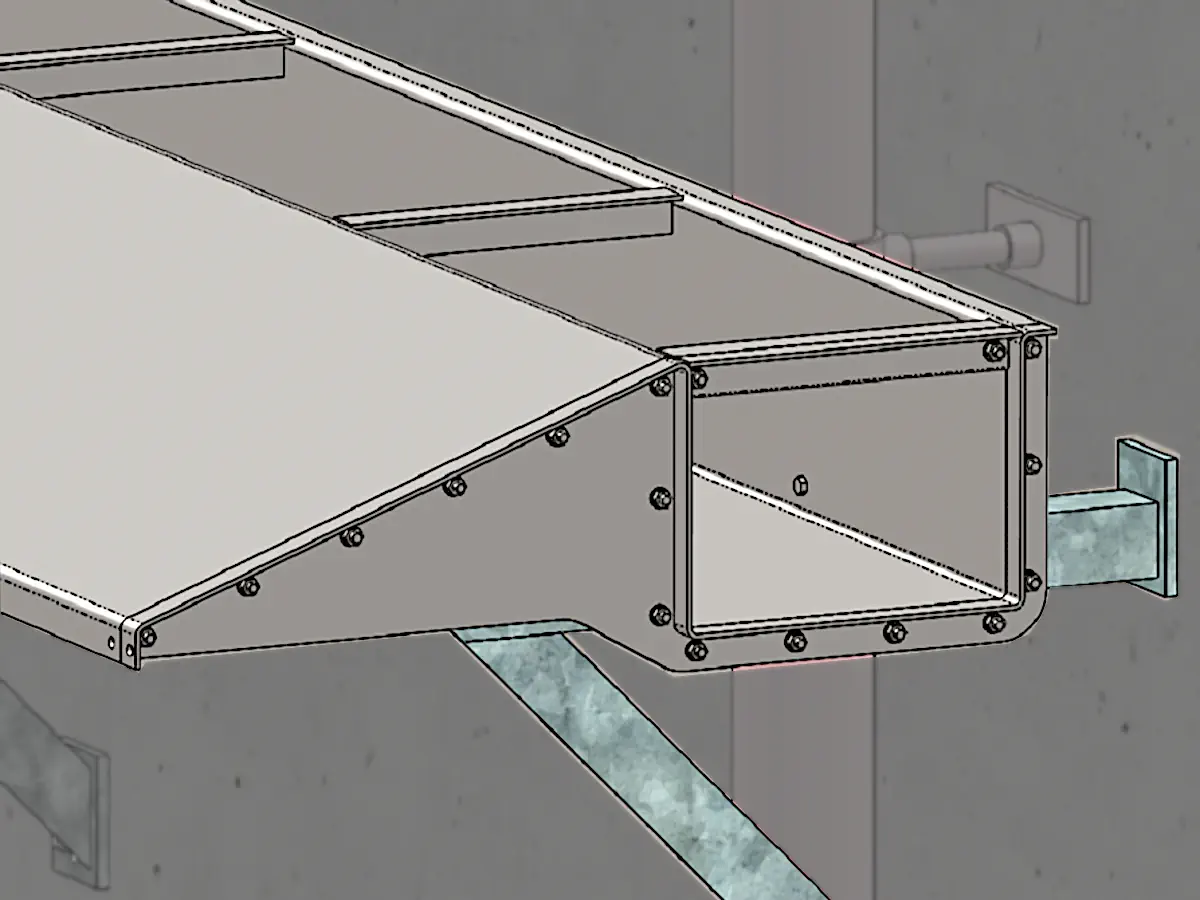

Model view of the replacement scum beach assembly

Situation

A water-treatment refurbishment required replacement scum beaches within an out-of-service clarifier tank. The existing assembly was heavily corroded carbon steel, with little useful information remaining beyond what could be observed and measured on site.

The client needed a replacement package that could be fabricated and installed with confidence as part of recommissioning the tank, while moving to stainless steel for longer service life.

The real problem

This was not a simple redraw. With no dependable legacy design record, a partially decayed existing installation, and a material change from carbon steel to stainless steel, the risk lay in missing the hidden assumptions, interfaces, and fit-up issues that make site replacements go wrong.

The task was to recover enough reliable information from the existing installation, apply engineering judgement where the original basis was unknown, and produce a replacement package that would go in cleanly without surprises.

Constraints

Minimal legacy information: The original scum beaches had to be understood mainly from what physically remained on site, with no dependable design record to work from.
Right-first-time installation: The replacement had to fit and install cleanly within the existing tank, with zero site welding and allowance for site variation and interface surprises.
Carbon-to-stainless change: Improved durability was the objective, but the new design could not simply be treated as a blind copy of the old carbon-steel assembly.
Practical mixed-material replacement: The stainless replacement parts still had to work sensibly with new galvanised carbon-steel supports, while keeping the overall solution durable and buildable.

Client:

Water-treatment fabricator / installer

Role:

Mechanical engineering consultant

Period:

2021

Scope:

Existing-condition survey +
S/S replacement design +
Fabrication / install pack

Acceptance basis:

Like-for-like basis +
Engineering judgement +
Physical fit-up validation

Key moves

Surveying and reconstructing the existing installation

Surveyed the remaining scum beach arrangement on site and built an as-existing reference model from what physically remained.
Used that baseline to recover key geometry, interfaces, and dimensional assumptions before developing the replacement design.

Converting a corroded legacy assembly into a durable replacement

Developed a stainless-steel replacement design that preserved what needed to be preserved, while avoiding a blind copy of the decayed carbon-steel original.
Incorporated practical detailing for mixed-material interfaces and corrosion management where new stainless parts met galvanised support steel.

Designing for clean fabrication and fit-up

Produced a fabrication / install package intended to go in cleanly within the existing tank, with no reliance on site welding or improvised adjustment.
Used engineering judgement, supported by basic checks and model-based review, to sense-check spans, fit-up, and buildability before release.

Selected snapshots

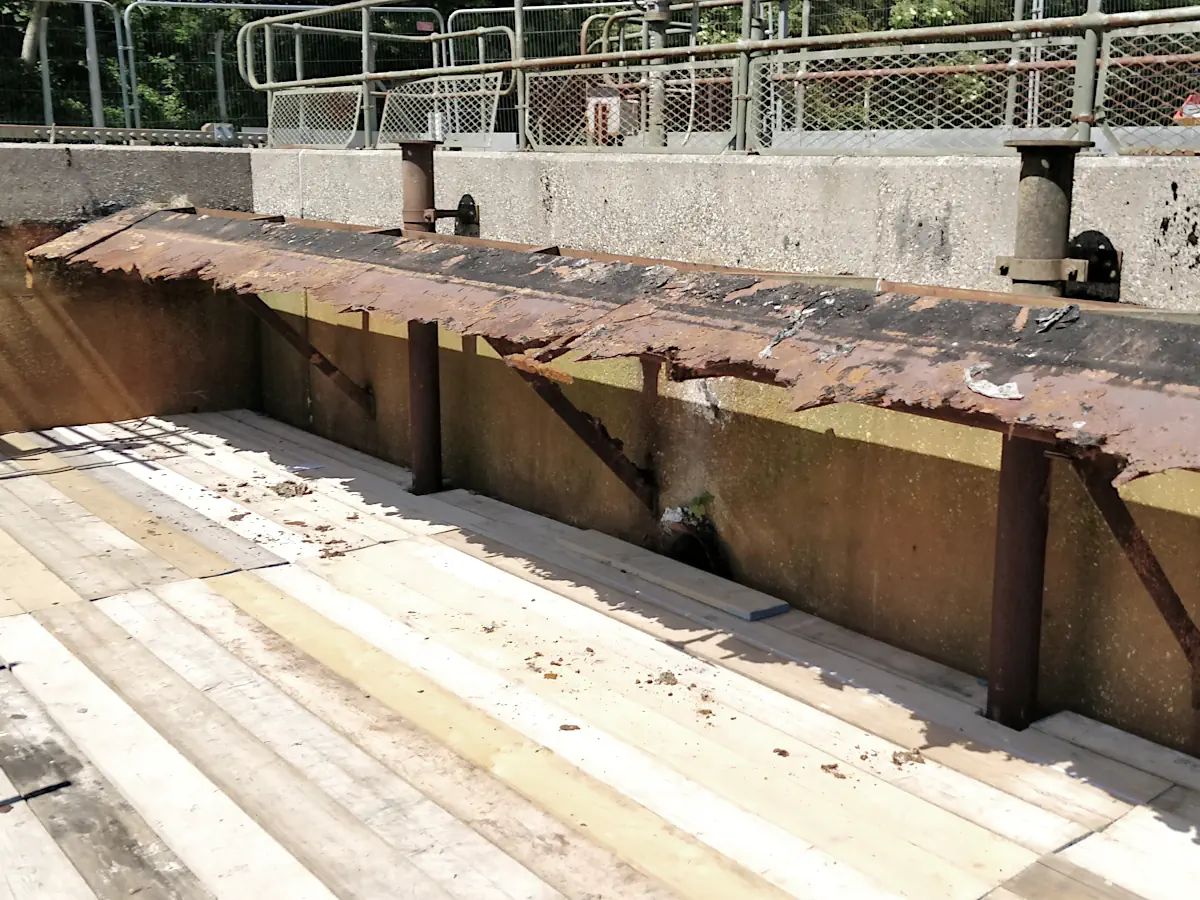

The original carbon-steel scum beach in heavily corroded condition

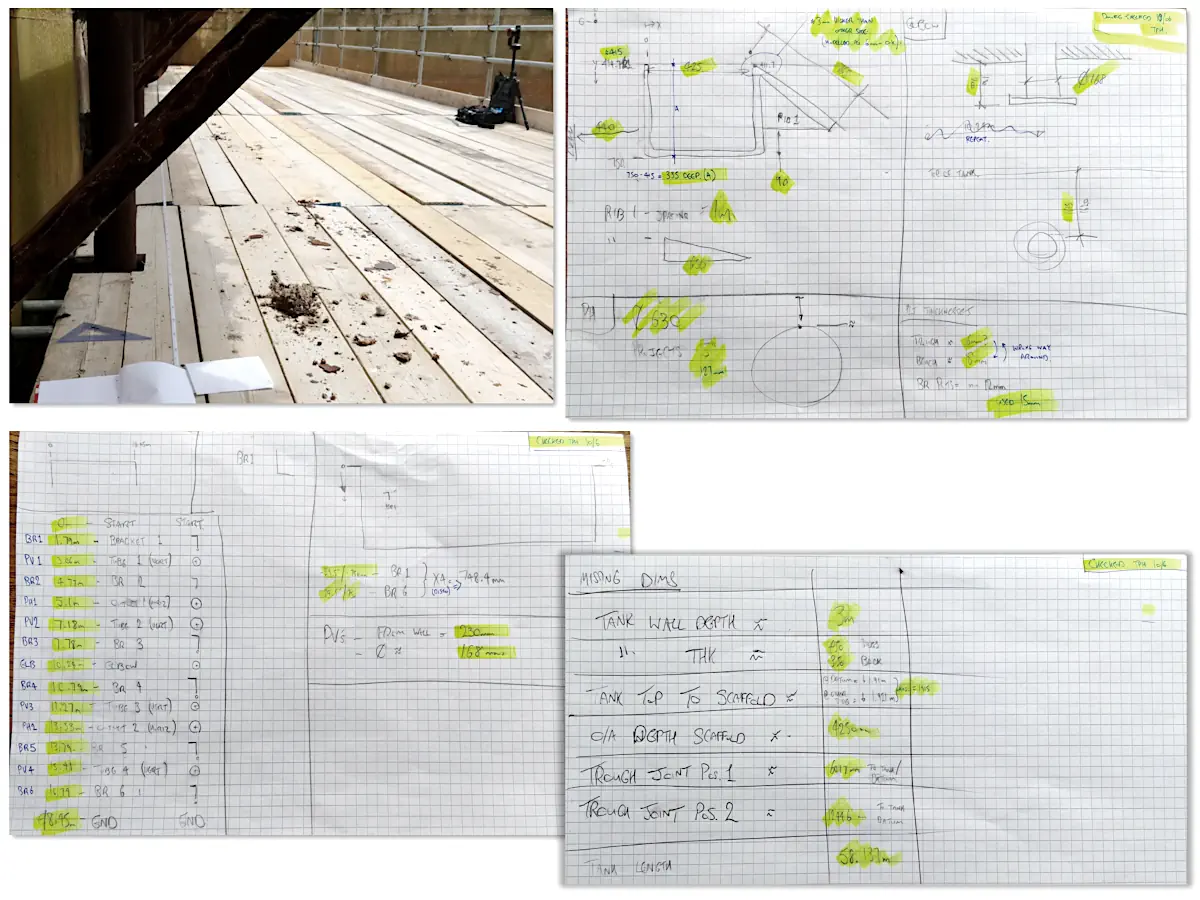

A site survey was carried out to recover the required dimensions in a single visit

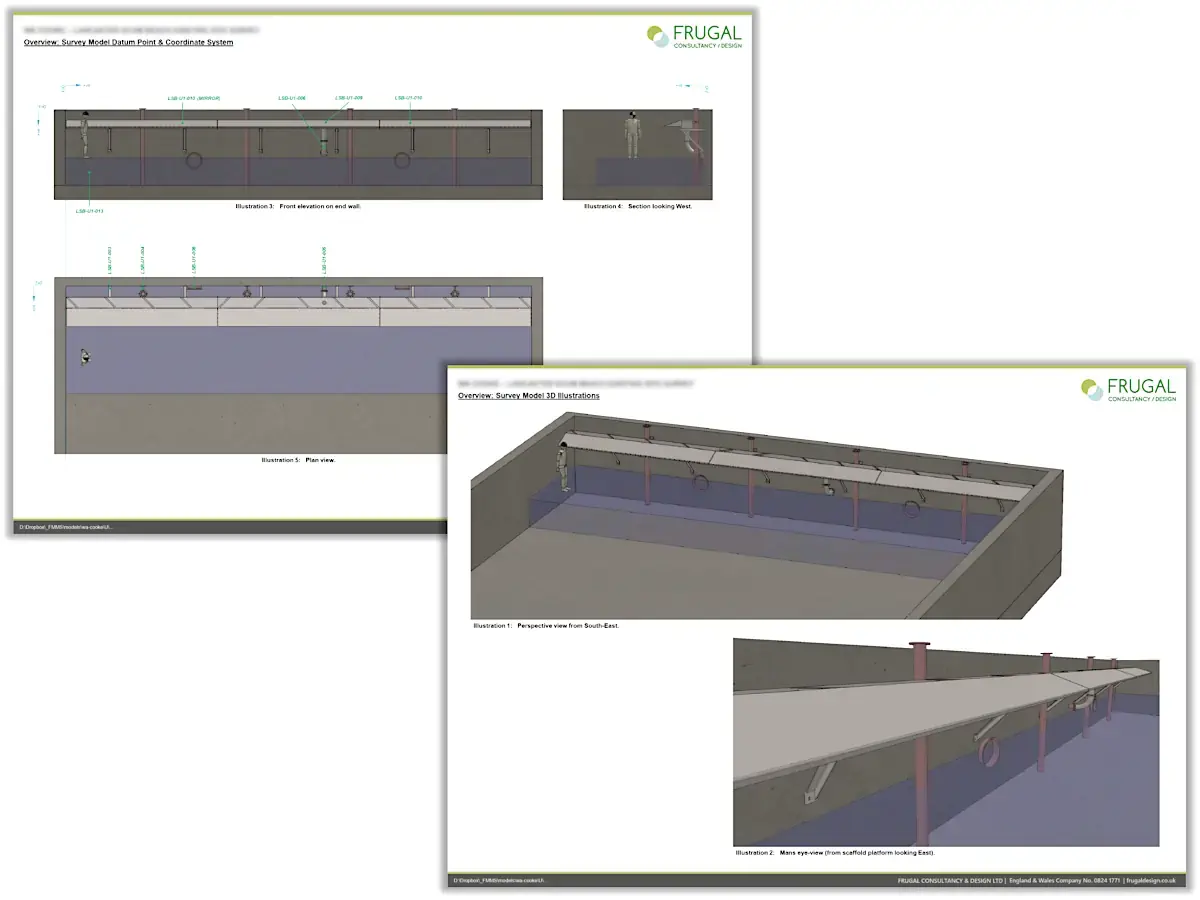

An existing-condition reference 3D model was produced from the survey data

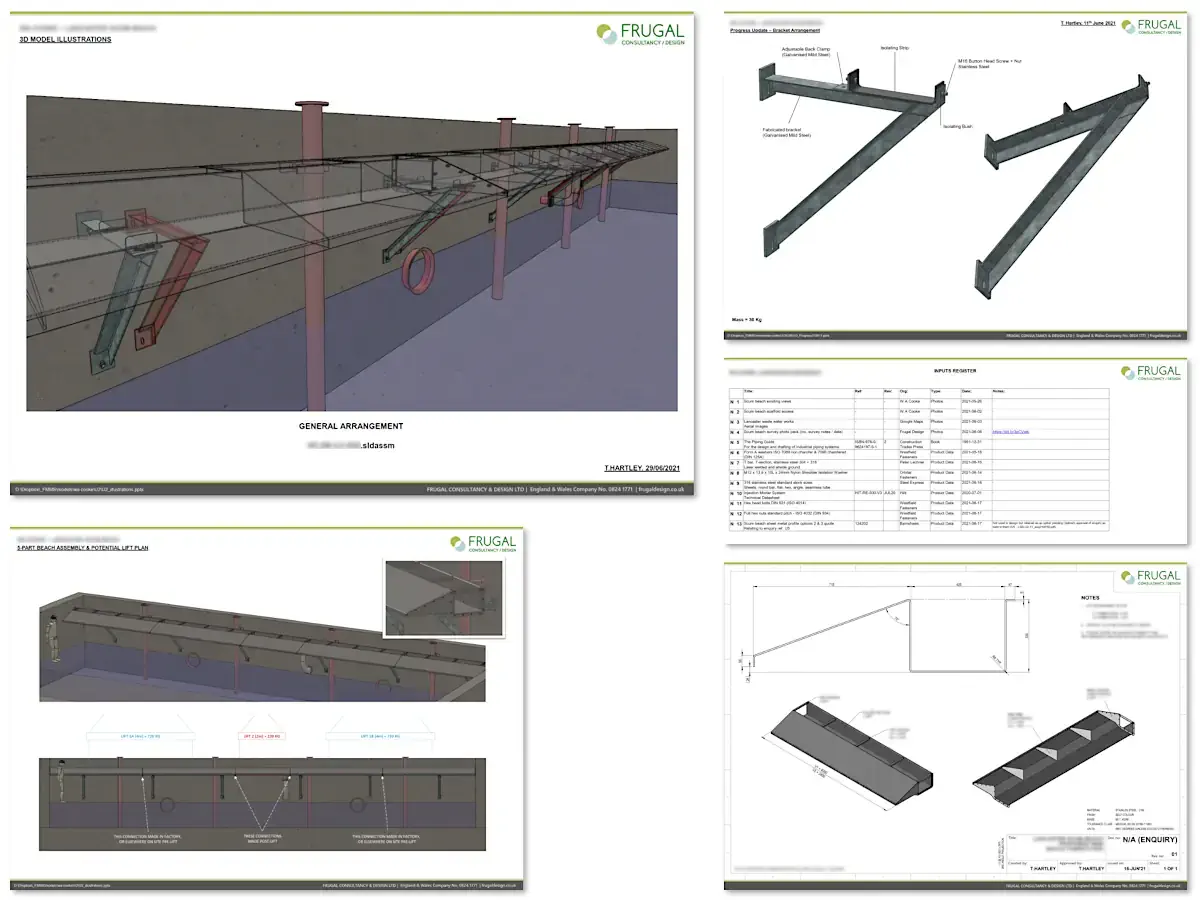

A full manufacturing-detail 3D model was developed for the reverse-engineered replacement

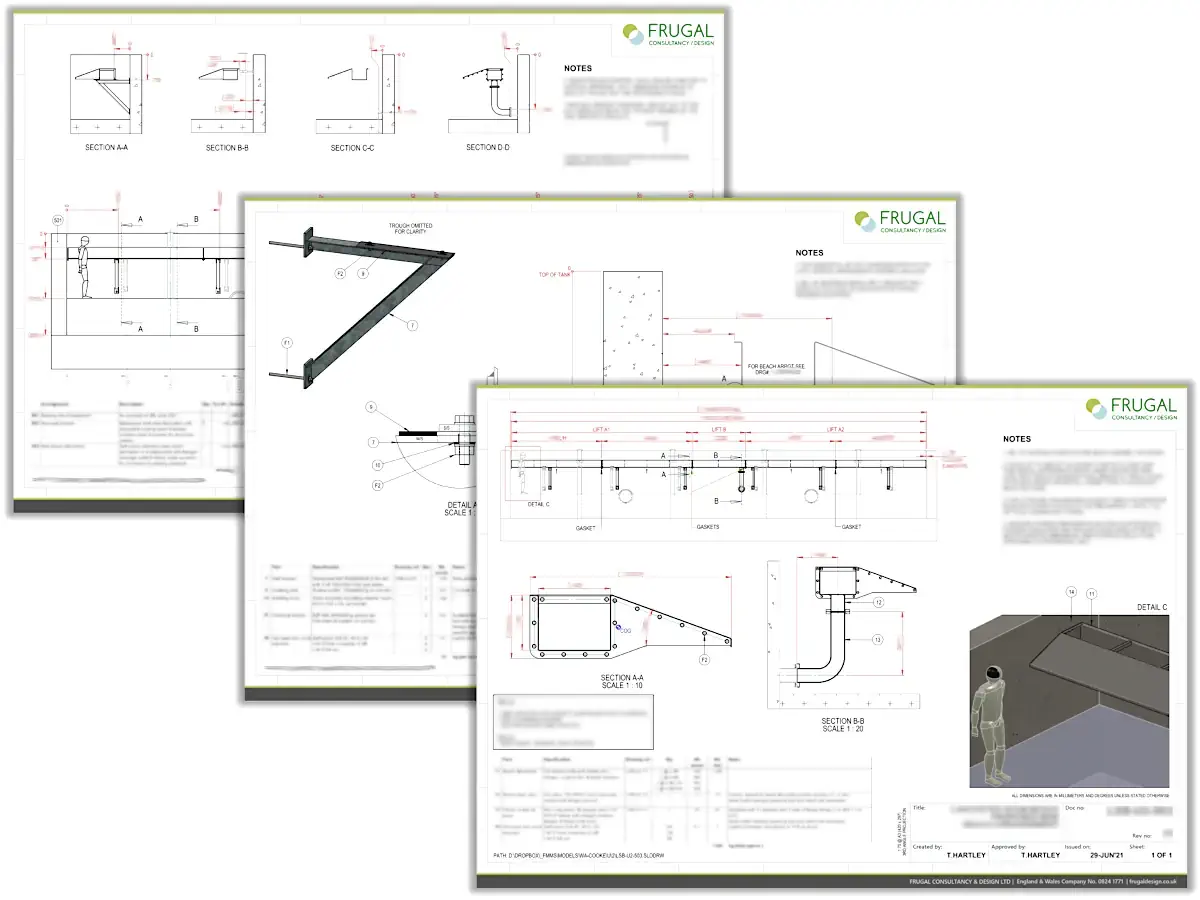

A full manufacturing drawing pack was produced, together with general-arrangement and installation drawings

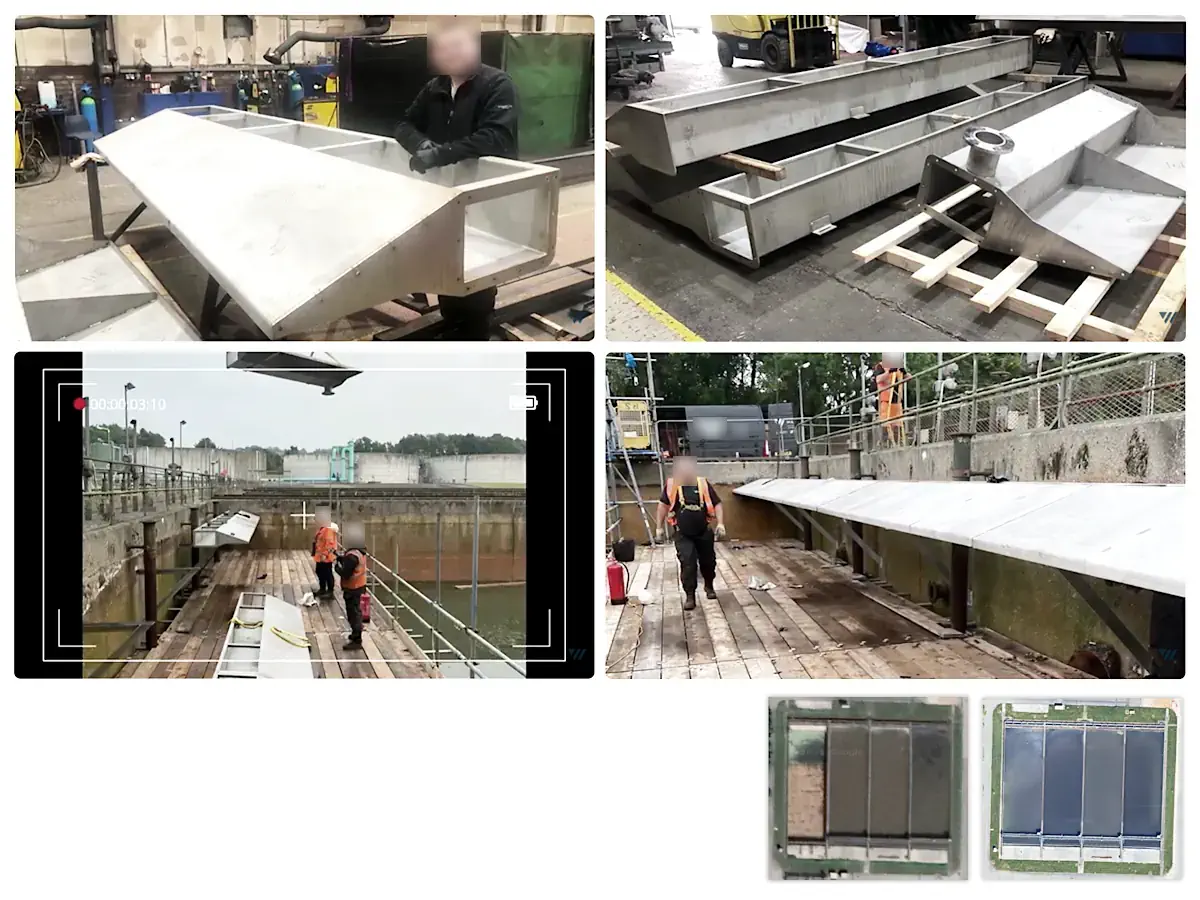

The stainless-steel parts were fabricated without issue and installed safely on site, right first time

Outcome

The replacement scum beaches were fabricated and installed successfully, with no reported fit-up issues or technical queries. This allowed the tank refurbishment to proceed with a durable new stainless-steel assembly in place.

What this enabled

It turned a decayed, poorly documented legacy installation into a practical replacement package that could be fabricated and installed with confidence. More broadly, it demonstrates how careful survey-led reverse engineering can de-risk messy refurbishment work where the original design basis has largely disappeared.

Business perspective

The client was very positive about the work and later published a project video overview of the refurbishment, from decayed original to the newly installed stainless-steel replacement, which featured visuals from the design process.

Based on archived project emails
